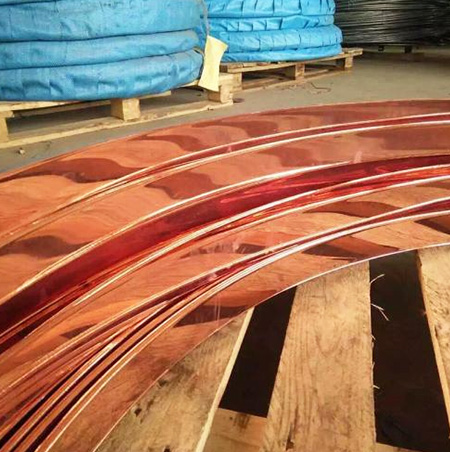

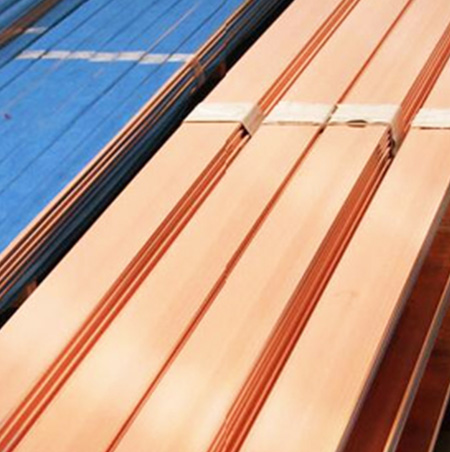

Copper Clad Steel Flat

1.the manufacturing process is unique: the use of cold rolling hot drawing production process, to achieve metallurgical welding between copper and steel. Can be pulled as a single metal arbitrary pull, no disjointed, warping, cracking phenomenon.

2.corrosion resistance is superior: the composite interface adopts high temperature welding, no residue, the bonding surface will not appear corrosion phenomenon; The thick copper layer on the surface (average thickness > 0.3mm) has strong corrosion resistance and long service life (more than 30 years) to reduce the labor intensity of maintenance.

3.better electrical performance: the excellent conductive characteristics of the surface copper material, so that its own resistance value is much lower than the conventional material.

Chat Now Inquire Now

Features

  • the manufacturing process is unique: the use of cold rolling hot drawing production process, to achieve metallurgical welding between copper and steel. Can be pulled as a single metal arbitrary pull, no disjointed, warping, cracking phenomenon.
  • corrosion resistance is superior: the composite interface adopts high temperature welding, no residue, the bonding surface will not appear corrosion phenomenon; The thick copper layer on the surface (average thickness > 0.3mm) has strong corrosion resistance and long service life (more than 30 years) to reduce the labor intensity of maintenance.
  • better electrical performance: the excellent conductive characteristics of the surface copper material, so that its own resistance value is much lower than the conventional material.
  • wide safety and reliability: the product is suitable for different soil humidity, temperature, PH value and resistivity under the condition of grounding construction.
  • the connection is safe and reliable: the use of special connection pipe or hot melt welding, joint firm, good stability.
  • convenient installation: complete accessories, convenient installation, can effectively improve the construction speed.
  • improve the grounding depth: special connection transmission mode, can be deep underground 35 meters, to meet the requirements of low resistance in special occasions.
  • Low construction cost: compared with the traditional construction method of pure copper grounding rod and grounding zone, the cost is greatly reduced.
  • Plasticity of copper layer: when the grounding rod and grounding round wire are bent at 30 degrees, there is no crack on the inside and outside edges of the folding Angle. Binding degree of copper layer: after the adhesion test, except for the peeling of copper layer in the jaws of the vise, the copper and steel in the rest are well bonded, indicating peeling phenomenon.

Technical Parameter

Specification 60*6 (mm)
Cross-sectional area 360mm2
Weight 2.835kg
Length  1m
Copper plating thickness > The 0.25 mm
Tensile strength  ≥600N/mm2
Flatness error  ≤0.5mm/m
