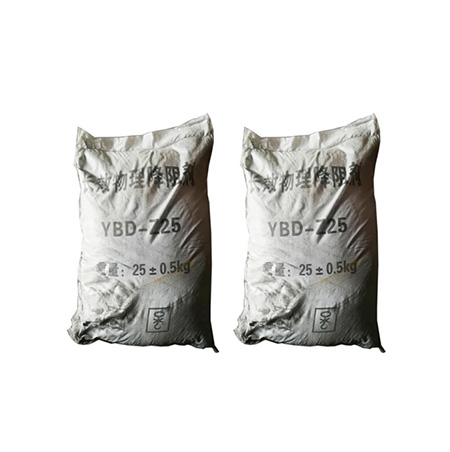

Drag Reducing Agent

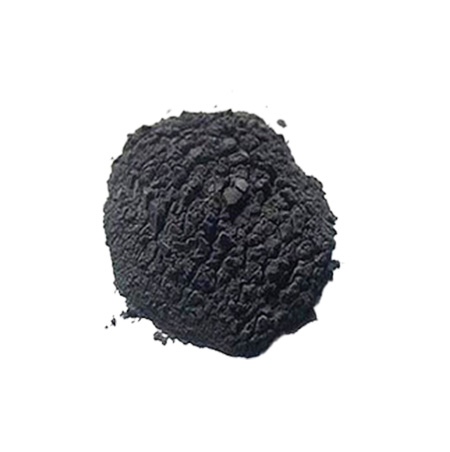

It is high-tech product, is a non-metallic black gray powder conductive polymer material. Its conductivity is almost as good as that of a metal conductor. It has high conductivity, low resistance value and excellent negative resistance characteristic with the increase of current density. It has a high resistance reduction rate and a time efficiency of more than 50 years. It is stable, non-toxic and non-corrosive. It is an indispensable material for lightning protection earthing electrode to reduce grounding resistance, and also protects earthing electrode from acid and alkali corrosion in the soil. In mountainous areas without water, the expected resistance reduction can be achieved by directly using dry powder instead of water and rare earth lightning protection and resistance reduction agent.

Chat Now Inquire Now

Features

It is high-tech product, is a non-metallic black gray powder conductive polymer material. Its conductivity is almost as good as that of a metal conductor. It has high conductivity, low resistance value and excellent negative resistance characteristic with the increase of current density.
It has a high resistance reduction rate and a time efficiency of more than 50 years. It is stable, non-toxic and non-corrosive.
It is an indispensable material for lightning protection earthing electrode to reduce grounding resistance, and also protects earthing electrode from acid and alkali corrosion in the soil.
In mountainous areas without water, the expected resistance reduction can be achieved by directly using dry powder instead of water and rare earth lightning protection and resistance reduction agent.

Application

Lightning resistance reducer is suitable for various lightning protection grounding projects in high soil resistivity areas and water shortage areas in high mountains, such as electric power transmission and transformation, electric railway, post and telecommunications, microwave, satellite communication, TV tower, radar, electronic computers, laboratories, warehouses, oil depots and high-rise buildings.

Advantages

The resistance reduction effect is obvious, can reduce the construction workload, can be less earthing electrode , especially the use of horizontal earthing electrode to replace the construction of difficult vertical earthing electrode (in mountainous areas and rock areas, etc.).
The construction is convenient, can solve the construction site limited difficulties, can save a lot of metal materials, with long-term performance and stability, good anti-corrosion performance. Less affected by climate. Comprehensive technology and economy, etc.

Technical Parameter

1.resistivity drop: 50%-95% (the higher the soil resistivity, the more significant the resistance drop);

2.stability and long-term effect, the theoretical validity of resistance reducer is more than 30 years;

3. its water retention, water absorption than the previous products have significantly improved;

For other performance indicators, see the following table:
