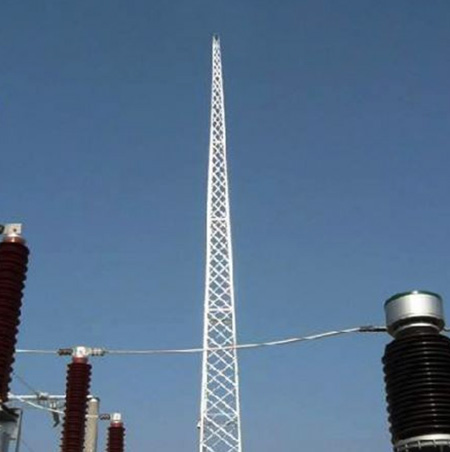

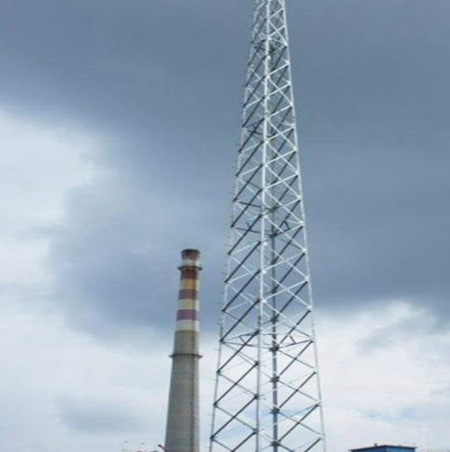

GFL Four Corner Lightning Tower

Patent certificates , third-party test reports, and can be customized according to customer’s needs (height, appearance)

1. The bulk density is small, the body density of the zero-ohm composite grounding system is only 1/5 of that of copper, and the weight is lighter, convenient, lightweight, and easy to carry manually. 2. The resistivity is small, and the conductivity of the zero-ohm composite earthing electrode is nearly one hundred times higher than that of ordinary non-metallic minerals, which is better than a good metal conductor (pure copper, etc.), which is conducive to the construction of high-quality ground grids, and is not easy to be steal.

Physically stable petroleum extracts, carbon, graphite and other non-metallic conductor materials are used as the conductive medium of the module, and its conductivity is not affected by the season;

It is high-tech product, is a non-metallic black gray powder conductive polymer material. Its conductivity is almost as good as that of a metal conductor. It has high conductivity, low resistance value and excellent negative resistance characteristic with the increase of current density.

Adopts steel tube as a pillar materials, small coefficient of wind load, wind resistance ability, pillar outside using flange connection, the bolt tensile, not easy to damage, save steel, like a small,

the manufacturing process is unique: the use of cold rolling hot drawing production process, to achieve metallurgical welding between copper and steel. Can be pulled as a single metal arbitrary pull, no disjointed, warping, cracking phenomenon.

Gb model: 17 meters independent lightning tower Height: 17m (including tip height) Weight: 611 kg

(1) Small contact resistance with soil (2) Good water absorption and retention performance (3) It can form a unique conductive channel deep into the soil and expand the drainage area

Copper clad steel grounding material is suitable for general environment and wet, saline-alkali, acidic soil that produces chemical corrosion clip, medium special environment, Widely used in power plant, substation, transmission line tower, communication base, airport, railway, subway station
