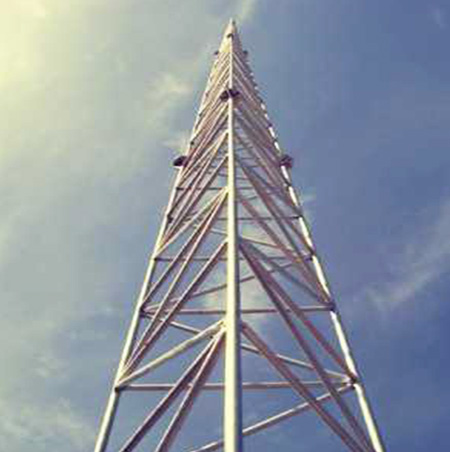

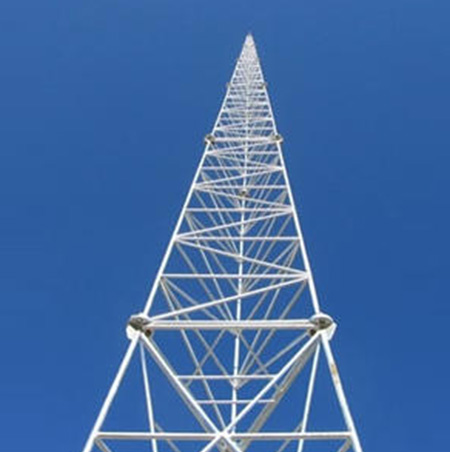

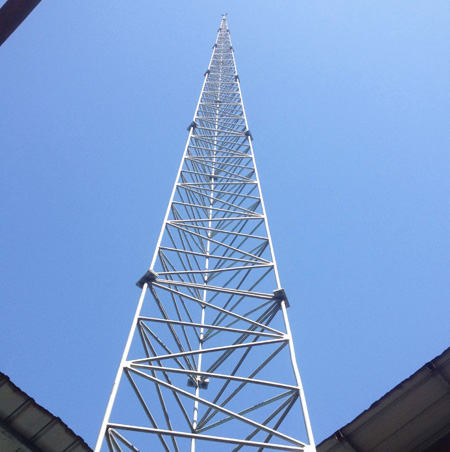

Triangle Lightning Tower

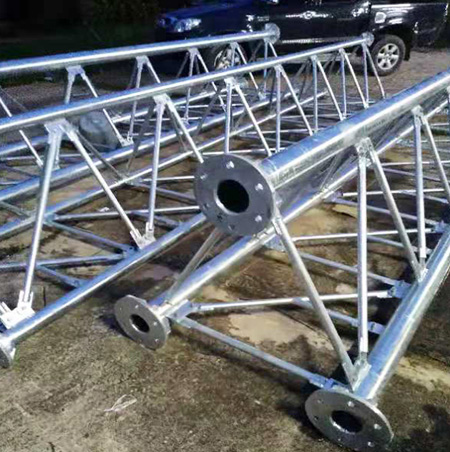

Adopts steel tube as a pillar materials, small coefficient of wind load, wind resistance ability, pillar outside using flange connection, the bolt tensile, not easy to damage, save steel, like a small, cover an area of an area small, save land resource, convenient location the towers are light weight, convenient transportation and installation, short construction period tower type wind load curve design, smooth lines, encounter a severe cyclone is not easy to collapse, reduce Human and animal casualties design conforms to the national steel structure design codes and the tower mast design procedures, structural safety and reliability.

Chat Now Inquire Now

Features

  • Adopts steel tube as a pillar materials, small coefficient of wind load, wind resistance ability, pillar outside using flange connection, the bolt tensile, not easy to damage, save steel, like a small, cover an area of an area small, save land resource, convenient location the towers are light weight, convenient transportation and installation, short construction period tower type wind load curve design, smooth lines, encounter a severe cyclone is not easy to collapse, reduce Human and animal casualties design conforms to the national steel structure design codes and the tower mast design procedures, structural safety and reliability.
  • Ability to resist damage: the wind/earthquake level 6 lightning protection principle: lightning current ShanQi is a perceptual, within the low impedance of the metal conductor downlead, to pick up after the flash of lightning current to the earth, and makes the protected antenna tower or buildings flanking and not charged. In most cases, the impact of the electrostatic field cable is less than 1/10 of the impedance of the tower, avoiding the building or tower charged, eliminating lightning limit into the mine current intensity, so that the protected equipment to reduce the harm of counterattack and induced overvoltage protection range according to the GB GB50057 rolling ball calculation.

Product Manual

  • Functions: lightning protection facilities for high-rise building, dangerous goods warehouse, oil storage tank, power station, electric field, computer room to protect people's property safety.
  • Applicable units: high-rise building/refinery/power plant/substation/oil warehouse/oil storage tank/warehouse/computer room/chemical plant and other enterprises.

Technical Parameter

Height  10 m, 18m, 25m, 30m (customized)
Weight  (30 meters high) less than 1 ton (the specific weight depends on the region, less and strong minefields, coastal wetlands and dry areas in the west slightly different.)
Material Q235-Q345 round steel
Anti-corrosion treatment  hot crossing zinc anti-corrosion treatment/cold crossing zinc anti-corrosion/paint painting
Material origin Baosteel, etc
Useful life more than 30 years
