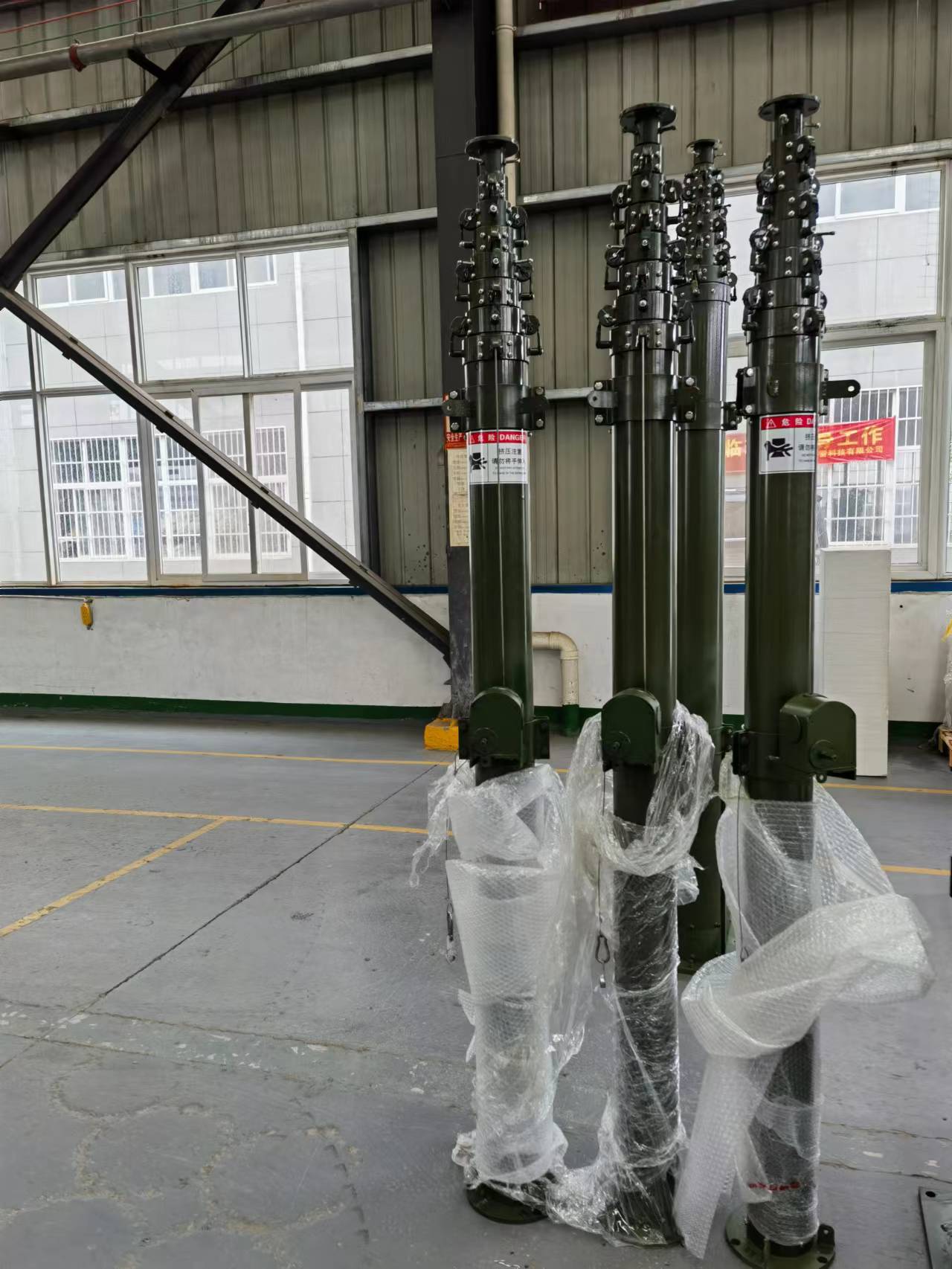

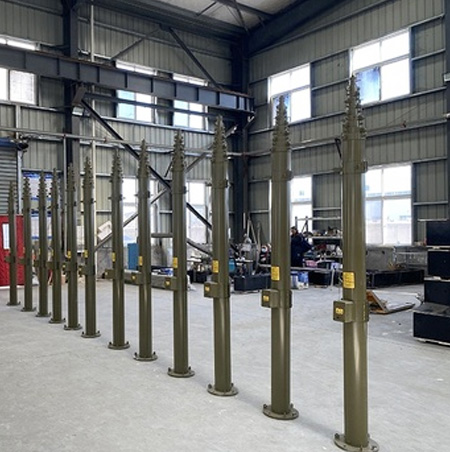

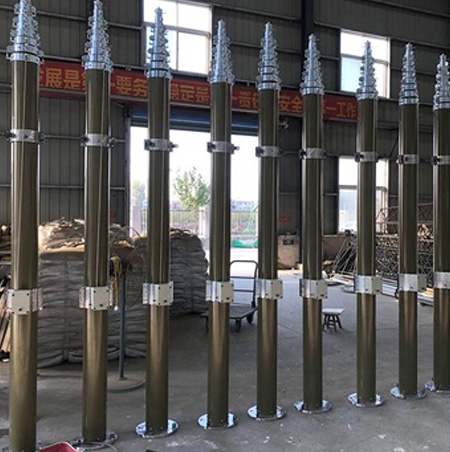

Hand Winch Telescopic Mast And How to Use

1) Top loading: 3kg or Customized.

2) Materials: Al Alloy or Carbon Fiber.

3) Wind Resistance: 27m/s or Customized.

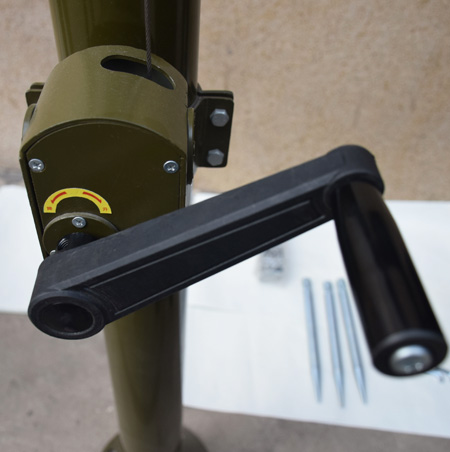

4) Driven Method: Hand Crank or Motorized by Electricity

5) How to use it?

Chat Now Inquire Now

Technical Parameter

Type	Retracted Height(M)	Raised Height(M)	Diameter(mm)		Weight of Hand Crank(kg)		Weight of Motorized(kg)
			Diameter(mm)		Weight of Hand Crank(kg)		Weight of Motorized(kg)
			Min	Max	Al.Alloy	Carbon Fiber	Al.Alloy	Carbon Fiber
YBK-5S	1.6	5	50	80	23	18	35	30
YBK-6S	1.6	6	60	105	24	20	38	34
YBK-8S	2.2	8	60	105	26	22	45	41
YBK-10S	2.2	10	50	105	28	24	55	50
YBK-12S	2.25	12	40	105	30	30	62	56
YBK-14S	2.3	14	40	120	42	40	75	67
YBK-15S	2.4	15	40	140	47	44	80	71
YBK-16S	2.45	16	40	160	51	47	84	74
YBK-18S	2.7	18	50	160	54	49	90	79
YBK-20S	2.7	20	40	160	57	52	96	84
YBK-30S	2.9	30	40	220	130	125	220	210
Note: 1) Top loading: 3kg or Customized. 2) Materials: Al Alloy or Carbon Fiber.3) Wind Resistance: 27m/s or Customized. 4) Driven Method: Hand Crank or Motorized by Electricity
